A step up from Flex Select, Flex Precision delivers superior audio intelligibility and musical detail in a wide range of form factors to match the dimensions and look of your video display. Flex Precision combines custom-quality sound and aesthetics with the ease and cost-effectiveness of an off-the-shelf audio solution. Flex Precision is available in passive, powered with DSP (PX) or powered with DSP and Dante (PXD) versions.

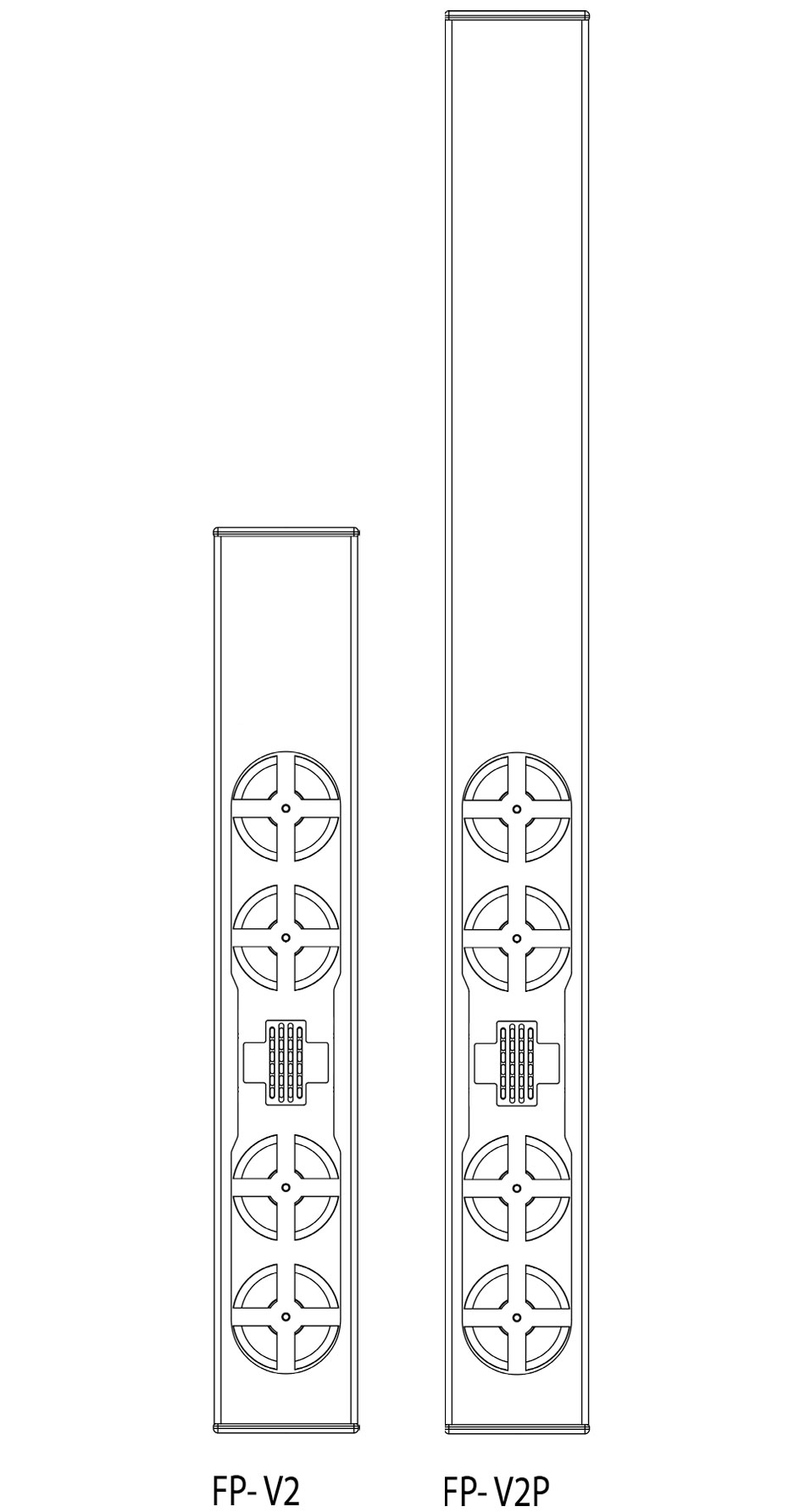

Vertical (Passive & Powered) Loudspeaker Solutions
Features
- Minimum Display Height
- Nominal Coverage
- Nominal Impedance
- Long-Term Power Handling (AES-2)
- Amplifier Power
- Long-Term Output
- Peak Output
- Height
- Width
- Depth
Passive
FP-V2
- 18.00”
- 120° H x 90° V
- 6Ω per channel
- 90 W
- N/A
- 105 dB
- 111 dB
- (custom)
- 4.06”
- 2.13”
Powered
FP- V2 P,PX,PXD
- 27.50”
- 120° H x 90° V
- N/A
- N/A
- 2 x 100W
- 105 dB
- 111 dB
- (custom)
- 4.06”
- 2.13”
Flex Amplifier Options
- (P) – Adds two 100-Watt channels of Class D amplification with balanced analog inputs.
- (PX) – provides two 100-Watt channels of Class D amplification, plus DSP. Inputs include balanced line level, unbalanced stereo, optical digital, speaker level, and USB.A processed sub-bass signal is provided for use with an Innovox Companion 2×6 powered subwoofer. Control options include: IR, RS-232 & USB.
- (PXD) – Provides all of the above, plus Dante and Ethernet control.
Key Features Passive
- Made to match height of video display
- Ribbon high-frequency driver for superior speech clarity.
- Passive and P models work with Micro-Sub family of subwoofers
- PX and PXD work with Companion Series powered subwoofer
Applications
- Stereo video conference speakers
- Complimentary audio for digital signage
- Uniform sound coverage for small to medium-sized rooms.

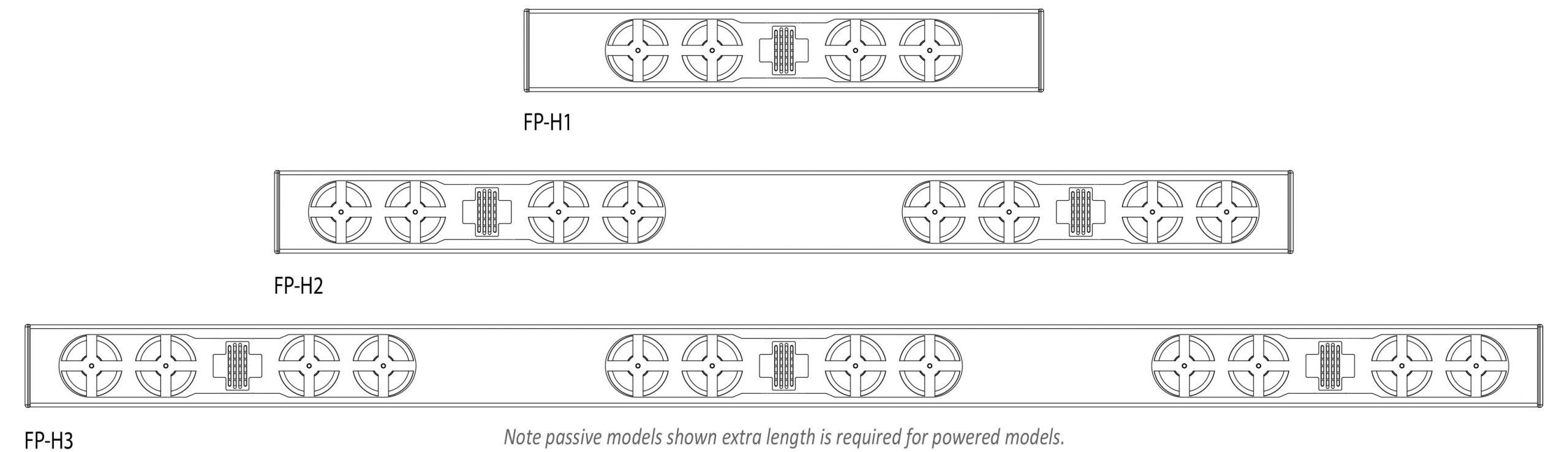

Horizontal Loudspeaker Solutions
Key Features
- Made to match width of video display
- Ribbon high-frequency driver for superior speech clarity
- Works with Micro Sub series subwoofers
Applications
- Mono video conference speaker
- Complimentary audio for digital signage
- Uniform sound coverage for small to medium-sized rooms.
Resources
Passive Horizontal Loudspeaker Data
Features
- Minimum Display Width
- Nominal Coverage
- Nominal Impedance
- Long-Term Power Handling (AES-2)
- Long-Term Output
- Peak Output
- Height
- Width
- Depth
FP-H1
- 18.00”
- 120° H x 90° V
- 6Ω
- 90 W
- 105 dB
- 111 dB
- 4.06”
- (custom)
- 2.13”
FP-H2
- 37.00”
- 120° H x 90° V
- 6Ω per channel
- 90 W per channel
- 105 dB
- 111 dB
- 4.06”
- (custom)
- 2.13”
FP-H3
- 50.00”
- 120°Hx 90°V
- 6Ω per channel
- 90 W per channel
- 105 dB
- 111 dB
- 4.06”
- (custom)
- 2.13”
Flex Amplifier Options
- (P) – Adds two 100-Watt channels of Class D amplification with balanced analog inputs.
- (PX) – provides two 100-Watt channels of Class D amplification, plus DSP. Inputs include balanced line level, unbalanced stereo, optical digital, speaker level, and USB. A processed sub-bass signal is provided for use with an Innovox Companion 2×6 powered subwoofer. Control options include: IR, RS-232 & USB.
- (PXD) – Provides all of the above, plus Dante and Ethernet control.
Resources
Powered Horizontal Loudspeaker Data
Features
- Minimum Display Width
- Nominal Coverage
- Long-Term Output
- Peak Output
- Height
- Width
- Depth
FP-H1 P, PX,PXD
- 27.50” P
32.43” PX,PXD - 120° H x 90° V
- 105 dB
- 111 dB
- 4.06”
- (custom)
- 2.13”
FP-H2 P, PX,PXD
- 46.00” P
51.43” PX,PXD - 120° H x 90° V
- 105 dB
- 111 dB
- 4.06”
- (custom)
- 2.13”
Key Features
- Made to Match Width of Video Display
- Onboard 100W Class D Power with DSP
- PXD Networked Version Adds Ethernet Control & Dante
- PX and PXD models work with Companion Series Powered Subwoofer
Applications
- Mono Video Conference Speaker
- Audio to Complement Digital Signage
- Uniform Sound Coverage for Near-Field Applications
